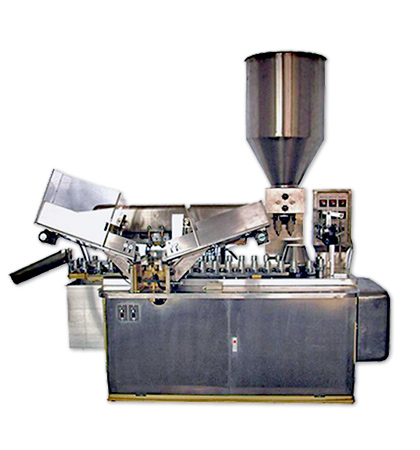

B.GF-801,802,803,804,805 Tube Filling & Sealing Machine

B.GF-801,802,803,804,805 Tube Filling & Sealing Machine

Machine Detail/Specification

The series are widely suit for filling and sealing the products, packed in soft tube, of the industry of cosmetic, toothpaste, medicine & food etc.

Feature: mechanism structure, auto pre-tube container, auto tube feeding, auto position, double head filling and sealing, no bottle no filling, stable operation, quick speed, firm and attractive sealing.

  • B·GF-801, outer heating, universal and convenient change of specification
  • B·GF-801, outer heating, universal and convenient change of specification
  • B·GF-804, inner heating, irregular shape sealing, all heating components ,tighten parts and sealing parts adopt irregular device, so its position is precise and the shape of end sealing and mouth sealing is various.
  • B·GF-805, it is suitable for filling and sealing the soft tube, the diameter is aboveΦ40. It has great filling volume and big tube diameter, with inner heating and outer heating.

Type 80-1 80-2 80-3 80-4 80-5
Power Supply 380(220)V/50Hz 380(220)V/50Hz
Power 5.5 kw 5.5 kw
Filling Volume 10―180ml 100―200ml
Volume Precision ±1.5% ±2%
Filling at One Time Two Two
Productivity 60-80 pcs/min 45-80 pcs/min
Tube Diameter Φ19―Φ35mm Φ40―Φ50mm
Dimension(L×W×H) 2320x1150x2190mm 2670x1300x2190mm
Weight 1300kg 1800kg
